CENTER DRAFT LAMPS

Center Draft Lamp Wicks - Lamp Fuel - History  -  Kerosene Heater Wicks
 Select Lamp Chimneys!

See also Care, Feeding and Restoration of Center Draft Lamps
& Installation of Wicks

I have tight weave English-made wicks in stock for almost all circular wick, center draft lamps, including B&H, Rayo, Rayo Jr., P&A, Royal, Juno, all Miller's, Manhattan Student Lamp, Veritas, Hinks, L&B, etc.  See wick photo at the bottom of this page.

From just after the Civil War until WW I, some of America's finest minds were busy creating the most efficient - and beautiful! - lighting ever created.  In that era before home electric lighting, center draft lamps were the ultimate in interior lighting.  Every size, shape and design of lamps were designed and produced.  In general, table (also called "stand") lamps were the most popular because of price and availability.  Banquet lamps were taller, more ornate, and often had an insert fount for fuel.  To top things off, hanging lamps of ever size were made, from tiny lamps to the huge "mammoth" lamps.  Most of the lamps made during the Victorian Era were strong, well designed lamps that are still serviceable today.  Notables include the designers for Edward Miller, some of whom should be candidates for sainthood, and "engineers" for Ansonia, some of whom should be hung in effigy for crimes against humanity.

Table or "stand" lamps were made from the smallest "0" size for great fuel efficiency to larger, more ornate versions.  The lamp in the center foreground is a Tiny Juno Hand Lamp.  Far left is an ABC lamp, apparently produced pre-war in Europe, probably by the successors to Hugo Schneider's factories, as it is a steel lamp rather than brass.  Middle is a Miller Vestal #1, right center a Success.  Back left a P&A Royal, a B&H 1904 Perfection (it became the Rayo in 1906), and far back right is my Hugo Schneider - the last remaining 30''' "Blitz" table lamp in the world.

A collection of large table lamps to show relative size. Left to right: Den Haan 14''', B&H Trophy (insert fount), Hugo Schneider (insert fount), New Rochester size 0 pedestal, Veritas duplex, L&B 14''' pedestal, L&B 20''', Hinks 45 cp Annular, P&A Royal, B&H Imperial Banquet (insert), and Success Stand Lamp #2.

Just when you have it all figured out, along comes a ringer to disprove all theories.  All table lamps have a solid fount and are made of brass.  Wrong.  At right is a Hugo Schneider table lamp...which is made of steel and has an insert fount!  This is reported to be the last "Blitz" table lamp left in the world.  My Schneider was fabulously restored and has a new nickel plating by Dave Ward of The Village Lamp Shop.

Another rare table lamp.  British Hinks with an "Annular" (circular) wick.   This lamp could well have been a "one off," made especially for a client.  It has a large fount fitted with a 45 cp burner, and uses a Success/Belgian 20''' #1S wick.

Above, far right, shows this Hinks lamp burning with a shade.  Dark photo, but the photo shows the incredible size of this lamp compared to a few other table lamps. This huge lamp is over 18" high and the base is 7" in diameter: over 5 pounds of solid brass!

This Hinks Annular 45cp has that unique feature of Hinks lamps -  the Morton's patent iris fill cap, and a key lift gallery - the lamp can be lighted without removing the chimney and shade. [Flame spreader for this and the Veritas lamp above are from from Alex Marrack.]



HANGING LAMPS

Hanging lamps were produced in all sizes.  At left is a Miller "Dresden", which with a different flame spreader was an "Empress" or a Liberty 2/0.  Similar lamps were the B&H Radiant #5 and the P&A Plumwood. These lamps used an extremely efficient burner and flame spreader design to produce almost as much light as a "mammoth" lamp - for 1/3rd the fuel consumed.  All were affordable copies of the Belgian lamp.  The "Little Jewel" on the right is one of the smallest hanging lamps ever made.  Master craftsman Dave Ward made the harp, restored the lamp, then plated the lamp, harp and shade holder with rose gold.   Wow.

At right, a beautiful Juno #3 Store lamp owned by Alex Muzyka.  Far right, a collection of store lamps. Foreground, left, a Little Jewel and a Tiny Miller. Second row is a P&A Plumwood, a Radiant #5 and a Dresden.  Far back right side is a Globe Incandescent #2.  The Tiny Miller is currently at Dave Ward's shop to have a hanger made.

Unique Veritas hanging lamp.  Slightly pink original shade, twisted brass rods supporting of the hanging fount frame.  The burner uses a #1S wick - the same wick as Success, B&H Radiant #4,  Hinks 45 cp and Belgian 20''' lamps.   The lamp burns beautifully, but lighting requires removal of the chimney and filling the fount requires removal of the shade as well.  This lamp is in want of a lift gallery like the Hinks shown above, but I could look a long time for one of those.  [Flame Spreaders for Veritas lamps, Lempereur & Bernard (L&B) Brevette lamps (Belgian), and Imperial/Vulcan lamps are available from  Alex Marrack in England.]



Banquet Lamps  (A work in progress, sorry)

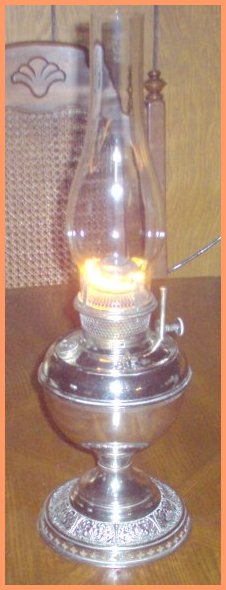

Three different circular wick lamps illustrated above.  At left is a B & H "Trophy" lamp with a Radiant #4 burner, quite unusual and ornate.  In the center is a silver B & H desk lamp shown without the milk glass shade.  The B&H "Trophy" lamp on the right has been electrified, but in an emergency the socket can be pulled out, the flame spreader put  back in, the lamp fueled, and in less than an hour it is again a working fuel lamp: This particular B&H "Trophy" lamp is an extremely rare insert fount Radiant #4, undated, with only "Patent Applied For" on the wick raising knob: no photograph is shown in Courter's "Center Draft Kerosene Lamps 1884 - 1940" of an insert-fount banquet lamp with a Radiant #4 burner.

Please note these lamps were primarily designed as reading lamps, not area lighting lamps, although some of the banquet lamps were very tall and designed to light up a huge banquet room.  Most of the center draft lamps with a removable font were tall so they would spread light down and around a whole table so reading was possible from every side of the table.  This feature is best illustrated by the scene in the movie "Gone With The Wind," where just after the intermission the women are all sitting around a table reading while waiting for their men to return from cleaning out shantytown.  That is why these lamps are often referred to as "GWTW" lamps even though the movie "set" was wrong - the first of these lamps were not designed and manufactured until ten years after the Civil War.

Circular wick, center draft lamps should be burned at near maximum light output to properly heat the flame spreader to burn up all fumes.  If used turned down to minimum light output, they will produce an aroma when burning, but not when properly adjusted for maximum light output.  For simple area lighting, a standard #2 burner flat wick lamp is sufficient, and the old "Eagle" and "Banner" burners made by P & A are by far the best designs.

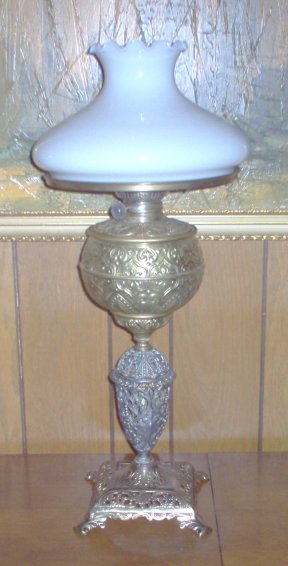

At left, my B & H "Imperial" banquet lamp, designed for placement in the middle of a long banquet table to not only light up a formal banquet room, but reflect well on the owner.  This lamp is well over 2 feet high excluding the chimney.  Patent date  1884. The Imperial burner unit is extremely rare, actually being a Kosmos-Brenner burner made by Wild & Wessel (Germany) using a 3 5/8" wide wick. This is an extremely rare non-circular wick B&H banquet lamp.

The P & A Royal lamp on the right has a 14" high hand painted ceramic base.  The yardstick shows the size of this lamp, but it is still less tall than the lamp on the left.

Kosmos-Brenner lamps can be considered as center draft lamps because of the end result, but the wicks are flat. There is a separate page illustrating Kosmos-Brenner lamps.





The size of these lamps is deceptive in the photographs...the ruby glass shade on the B&H Radiant #4 lamp at right is 14" wide!  The lamp itself is over 16" wide.  I just cannot make the beautiful ruby color of the lamp shade appear correctly with my cheap digital camera. The silver B & H parlor lamp has a beautiful 8" shade, the right size for the design. Click on the photos to enlarge.

These large center draft lamps will burn kerosene, but they were actually designed to burn "low odor mineral spirits."  The same "lamp fuel" is available today, but marked "Paint Thinner with Low Odor Mineral Spirits."  ["Low Odor" then meant low sulfur content.] It works just as well in center draft Kosmos lamps with the #15 burner with flame spreader or an Aladdin lamp.  Virtually no odor, no tar buildup, wicks seldom have to be trimmed, the flame is a nice bright white (see lamp above on the left), and it's less expensive than hardware store kerosene!  It also stores extremely well.

Handlan Buck #30 Caboose lamps, made in St. Louis.  The lamps fit into a special bracket for wall mounting when the train was moving, then the lamp could be moved to a table for reading - and heat, as these lamps produce about 2,000 BTU/hr.  These lamps used wick #2 P&A, a thick 1 1/2" center draft wick in a special gallery made by P&A:  Note that the stem for raising the wick is on the gallery, not on the font.  These lamps were made of heavy galvanized steel and are almost bulletproof.  There is in inner sleeve for the wick, and about a quart of fuel is in batting in the round fount, so no fuel could slosh or spill as the train was moving. I have restored the lamp on the left and it is burning for the first time in over half a century at least.



OTHER CENTER DRAFT LAMPS

Center draft lamps came with wick diameters of "Baby," at 5/8", to huge "store lamps" requiring a 2 9/16" diameter wick.  Many of these lamps were works of art and survived the lack of suitable wicks simply for that factor.  Now I have wicks for virtually all of them!

 Miller Finger Lamp, owned by Alex Muzyka

Click on any photo below to enlarge it.

Requires wick #0L.

Assortment of miniature lamps using wick #0L: From left to right: Rochester mini finger lamp, Plume & Atwood "Little Royal", Bradley & Hubbard finger lamp, Guadard 15''' Matador lamp and cut off a little in the picture, a Plume & Atwood nickel plated "Little Royal" with 6" shade. Owned by Alex Muzyka.   Wick #0L.

At left, Rayo Jr: Flame spreader; lamp lighted. Photographed by Alex Muzyka. Now mine!

Wick #1R.

Junior lamp lineup: Far left: Rayo Junior; 2nd from left: Miller Juno Junior; 3rd from left: Bradley & Hubbard Junior; Right: Plume & Atwood Royal finger lamp (As far as I know, the only size #1 finger lamp. Everyone else made only size #0 finger lamps). Owned and photographed by Alex Muzyka.
Wick #0L.

Lempereur & Bernard (L&B) Brevette lamp (Belgian), unlighted. Owned by Alex Muzyka.

Flame spreader from Alex Marrack.

Wick #1R

At left is a Success Stand Lamp #2.  In the "Pilabrasgo Success Oil Lamps catalogue #13 this is referred to as an "S-Success, Stand Lamp Solid Brass, Nickel Plated, with Success Centre Draft Burner and Chimney.  Height to top of Chimney, 22".  It was just Pittsburgh Brass Co. from 1889 to 1898, then became PIttsburgh LAmp, BRASs and Glass CO or "PILABRASGO".  So this Success lamp most likely dates from sometime in the 1890's.  It is in perfect condition.    The new wick is shown at right burning brightly.      Wick #1S.

From left:  Veritas 20''' table lamp: Veritas 20''' lamp with drop-in font; Unknown lamp very similar to a Success Stand Lamp, maker unknown. Owned by Alex Muzyka.

Wick #1S

A rare Miller Dresden #2 hanging lamp.  A "store" hanging lamp font but using a burner requiring a 1 1/2" wick - #2B - thicker than a Rayo wick but not as thick as a P&A Royal wick.  These large lamps used the same wick raising mechanism as the New Juno.  The Miller Empress is virtually identical but uses a different flame spreader.  Circa late 1890's to early 1900's.    From my collection.

[Note:  The Dresden #1 and Empress #2 were stand lamps.;  The Dresden #2, Liberty #2 and Empress #3 were hanging lamps - all used a wide-base flame spreader.  The Liberty #1 (both stand & hanging fount) used a post-type flame spreader like the L&B.  The burners were apparently copies of the L&B Belgian 20'''.]

At left, rare B & H Model 89 "store" lamp, and unlit. Owned by Alex Muzyka.

Note the very unusual 4 1/2" fitter, wasp-waist chimney.

Wick #3L

Juno #3 store lamp, similar to the Rochester #3 store lamp. Owned by Alex Muzyka.

Wick #3L

Far left; Rochester Tavern or Store Lamp, center, Photo of measuring lamp central air pillar. This lamp is owned and was photographed by David W. in Florida.

Wick #3L

Above, left:  Globe Incandescent No 2.; Center above, Flame spreader indicia. Made by The Standard Lighting Co., Cleveland, O. U. S. A.   Above Right; Globe Incandescent No. 2, Photo courtesy of Dick Stauffer.  At left, my Globe Incandescent No. 2 burning brightly for the first time in over 70 years!!!  The flame is a little ragged because this is the first burn.  To protect that ultra rare, 4 1/2" wasp-waist chimney, the flame is adjusted down considerably from the light output designed into the lamp.  The heat output of this lamp is sufficient to warm a room all by itself.  Requires wick #3L.

INSTALLING WICKS IN CENTER DRAFT LAMPS

BRIEF HISTORY

Plume & Atwood (P & A) lamp lines included Royal, Plumwood and Naugatuck. Their burners included Banner, the Moehring and Harvard burners for finer student lamps, the Hornet, Nutmeg and Acorn burners often found on night lamps, etc. Though not now as well known as the B & H lamps, their product line was vastly more diversified and their Banner tip-over burner was extremely well designed and clean burning. P & A’s Risdon facility in Danbury, CT made some particularly outstanding flat wick lamps, including bicycle lamps and brooder house heaters of exceptional high quality. P&A made all the brass parts (founts and burners) for all Aladdin lamps through 1963.

Bradley and Hubbard (B & H) is the most widely recognized name in circular wick, center draft lamps, producing these lamps beginning in 1875. B & H may have purchased lamp bases made by independent artisans (the "Roycrofters" movement) to fit their standard 4 15/16" burner units, as some of the bases are incredibly unique and unsigned or unmarked: by 1888, however, the company employed over 1000 people, so they also had their own in-house artisans. Due to the extremely high quality and unique beauty of these lamps, many have survived the past century in excellent condition. B & H produced the Rayo brand center draft wick under contract to Standard Oil Company. In about 1940, the Parker company purchased B & H and continued production of some less ornate B & H lamps and Rayo lamps until the early 1950's.  A flood in 1955 destroyed the factory and machinery.

Parker center draft lamps were manufactured from approximately 1870 until approximately 1931, but in less quantity than P & A or B & H due to their diversity into a wide variety of other products (Just try to buy a Parker side-by-side shotgun!). In 1939 - 40 Parker acquired B & H, moved their operations to B & H’s much more efficient production equipment at Meriden, Connecticut, and continued production of some models until the early 1950's.

MAINTENANCE AND REPAIR

Parts for the B & H and P & A lamps are not interchangeable.  B & H often used a burner with inside threads, whereas P & A burners quite often had outside threads, the diameters were different, etc.  "Spider" shade holders for B & H lamps are a little too large in diameter for P & A Royal burners.  Flame spreaders were of a different diameter, etc. They lamps may look identical, but they have definite subtle differences which preclude interchangeability of most parts.  As both companies manufactured many different models, parts are often not interchangeable between lamps made by the same company only a few years earlier or later.

The construction techniques used to make the lamps were also different.  Many B & H lamps are found today with dents or creases in  the body or top of the font, as the brass used was quite thin.  P & A Royal lamps, on the other hand, used brass about twice as thick, so it is rare to find a dented P & A lamp.  There are experts who can unsolder the center draft tube from the bottom, gently smooth out dents, polish the parts while disassembled, then solder the parts back together, making an old dented B & H lamp look like new.  Stress cracks in the body of B & H fonts are another matter all together, as the brass tank on the font inserts was a stamping and too thin for easily repairing the stress cracks...a new (old) font in good condition is usually required to salvage and use an exquisite lamp base designed for a 4 15/16" font insert.

WARNING FOR LAMP REPAIRS AND RESTORATION!

There is a link on the Links Page for lamp restoration, and other quality, HONEST restorers are listed by Lanternet.com.  There is a tendency for honest, decent people to assume that others are also honest and decent.  Bad assumption, as there are always crooks, thieves and swindlers that will take an opportunity to rip people off if they can.  That is particularly important with lamp repairs, as usually the lamp or lantern must be sent off to a distant location for repairs by someone you have never met nor are likely to ever see.

---------------

QUESTION FROM READER CARL:

Thanks for sending the wicks so quickly! I wondering if you can give me some insight, I have a Rayo lamp that I can get the burner apart I have tried WD40. but it doesn't seem to be working... I was wondering if I soak the whole burner in kerosene if that might free the frozen part. the wick moves up and down fine. it just where its suppose to separate. that I can't get it to move. and i don't want to pry on it too much. Any help in this matter would be greatly appreciated. Thanks Carl

ANSWER:

There is a close fit on the sliding parts, with a detent on the inner part requiring the outer assembly to slide up and to the left with the detents in a groove. You should be able to see the slight ridge of the groove at about a 60 degree angle up to the left. When kerosene evaporates it leaves behind a waxy film which can harden over the years, and the evaporation also leaves a residue which is sticky.

Kerosene is not a solvent, so soaking in kerosene is not the solution. Gasoline is a solvent and can dissolve the sticky residue left from evaporated kerosene, but as with any solvent it is flammable and must be used with care. WD-40 is a water displacement oil (WD stands for water displacement), and is not really a solvent, though it is thin enough to act as one on thicker greases... which is not the problem you have.

No solvent on earth will dissolve wax, so generally heat is applied with a small torch, then the parts separated when hot with the aid of heavy leather gloves. Wax melts at approximately 150 degrees F, so not much heat is needed, certainly not enough to discolor the brass.

One of the simplest ways that often works to separate the parts is boiling water with some laundry detergent added. The detergent will dissolve any sticky residue while the boiling water will dissolve or soften the waxy residue. Detergent lowers the boiling point of water from 212 F to about 180 F, but that is still sufficient to melt the wax. Just put the burner assembly minus the wick into boiling water with detergent, boil for 15 minutes or so, then remove with tongs and separate the parts while hot and wearing leather gloves.

Once separated, scour with auto polish/cleaner, which will remove any residual traces of foreign matter, and the auto polish seals the pores of the brass so reassembly is easy.

The next step, of course, is to avoid the problem in the future by not using kerosene as a fuel. Paint Thinner - Low Odor Mineral Spirits, will work wonderfully well as a fuel and is clean, leaving no residue.  Miles

RESPONSE:

I can't thank you enough for your email, I tried the boiling water with detergent and it worked just like you said it would. Came right apart after a few minutes. Then I went over to the neighbor and got some gasoline and cleaned off the rest of it. now it work like its suppose to. so Thanks again that was a big help... I would of never guessed to do that, and probably would have bent it trying to pry it apart. that would have never worked. you got a friend in Pa... Carl

CHIMNEYS

The chimney holders should be adjusted (bent) so they only gently hold the chimney in place - NOT TIGHTLY!  These lamps produce a lot of heat and glass expands with heat - if gripped too tightly, the base of the chimney will break.  To avoid breaking the brass fingers which hold the chimney in place, use a smooth bladed paddle pliers to bend the fingers, holding the base of the finger with needle nose pliers.

Many P & A Royal lamps used a 2 1/2" fitter for the chimney, whereas B & H usually used 2 5/8" chimney fitters.  The fit of the chimney to a center draft P & A lamp is quite critical.  The height of the glass chimney from the base to the bulge should be 1 1/4" and the opening at the top of the chimney should be 2" minimum.  There are quite a few cheap 2 1/2" chimneys for sale which have a height from the base to the bulge of 1 5/8" and an opening of 1 3/4": the flame spreader is not in the bulge, but within the 2 1/2" base diameter.  These lamps generate a considerable amount of heat, and the combination of a restricted airflow with a 1 3/4" top opening and the flame spreader not up into the bulge often results in the chimney cracking horizontally at the base of the bulge on the first burning!   Those $4.10 chimneys that appear to be a good buy turn out to be not so charming when they break the first time you use them!
